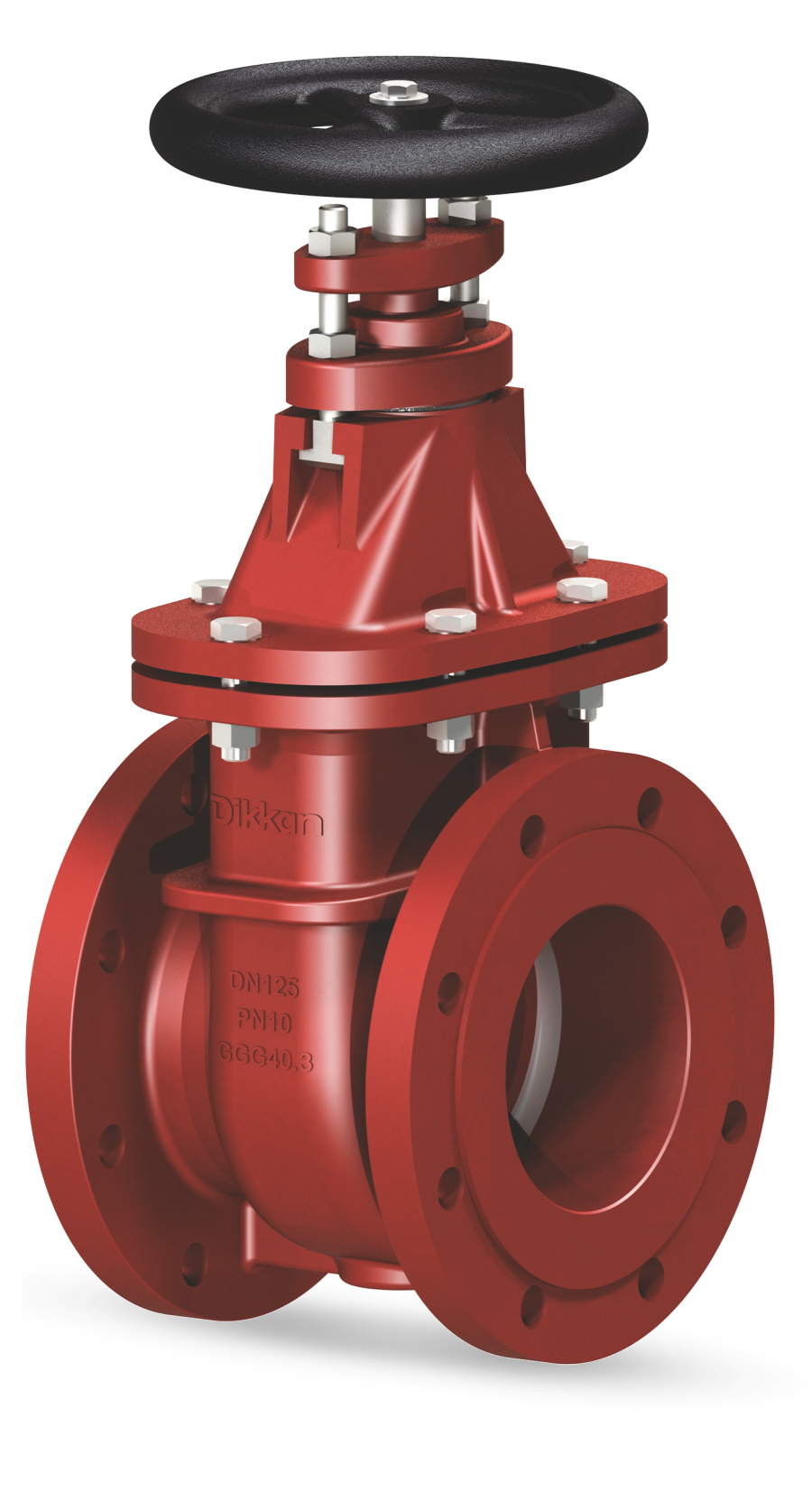

Sürgülü Vana Stop Ansı Boy

Sürgülü Vana

Pık Döküm
Paslanmaz Çelık

Teknik Özellikler

Standard	Special Design, ANSI Length
Face to face	ASME B16.10
Flange dimension	ANSI Flanges acc. to ASME B16.1 & 5
Pressure rating	PN2.5 - PN10
Options	Double threaded stem, drain plug, gearbox, actuator extension spindle, rising handwheel Special flange drilling acc. to DIN or JIS
