Sürgülü Vana Stop Ansı Boy

Sürgülü Vana

Sfero Döküm
Paslanmaz Çelık

Teknik Özellikler

Standard	Special Design, ANSI Length
Face to face	ASME B16.10
Flange dimension	ANSI Flanges acc. to ASME B16.42 & 5
Pressure rating	PN4 - PN16
Options	Double threaded stem, drain plug, gearbox, actuator extension spindle, rising handwheel Special flange drilling acc. to DIN or JIS

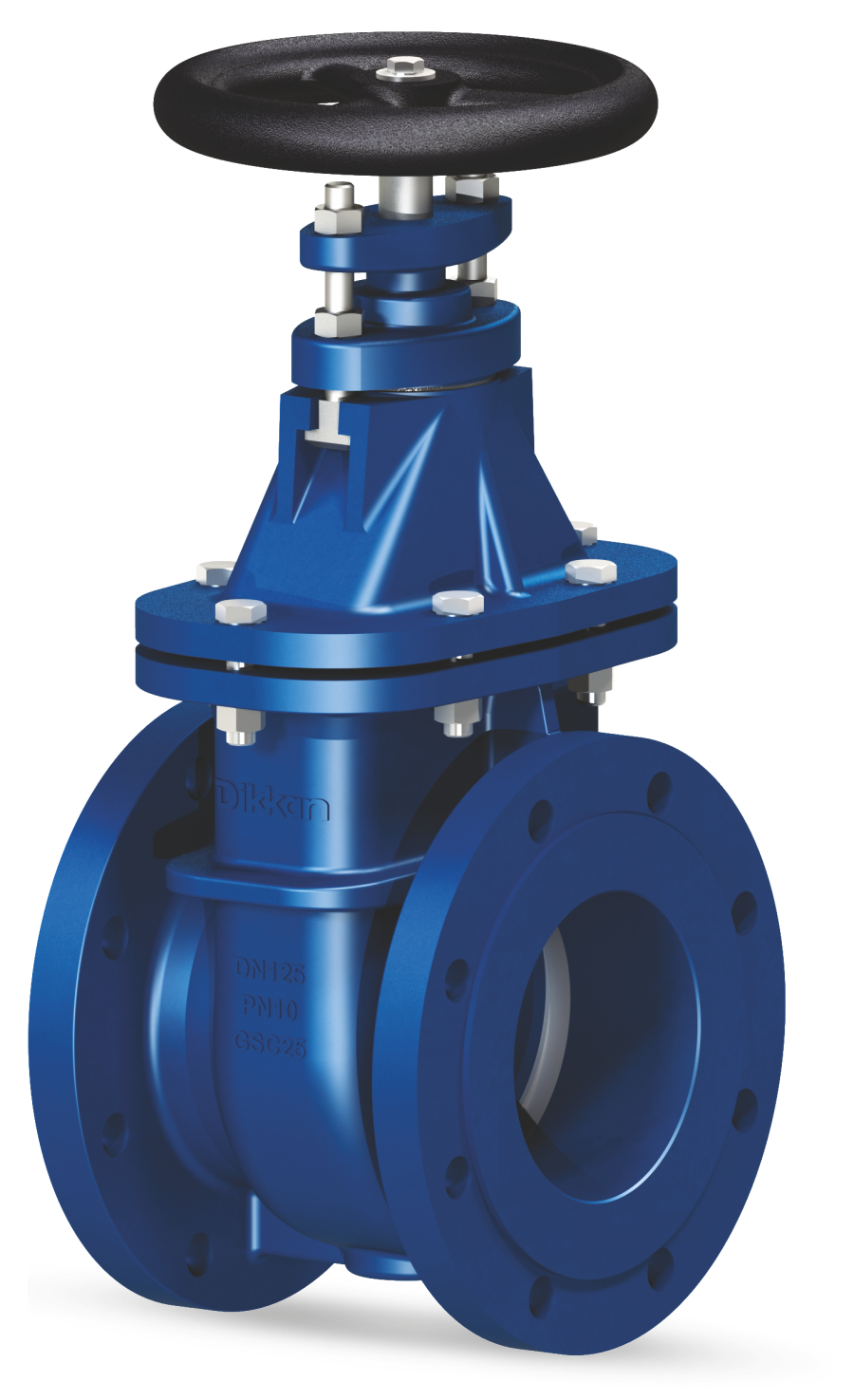

ANSI Ductile Iron Dikkan gate valves with stainless steel seats, raised or flat faced flanges
acc. to ANSI 150 bolted bonnet and with grease nipple and ANSI face to face length.
Outside screwed stem and yoke, rising stem and non-rising handwheel.
Application: Cold and hot water, fresh water, lubricating oil.
