Çamur Vana Düz

Çamur Vana

Sfero Döküm
Paslanmaz Çelık
Düz Tıp

Teknik Özellikler

Design	DIN 87151 D - With quick release cover
Face to face	DIN 87151 - Straight Type
Flange dimension	DIN Flanges acc. to EN 1092-2/B (DIN 2501)
Options	CuNiFe basket or special perforation, air plug or air vent valve on the cover
Flange Options	Special flange drilling acc. to ANSI or JIS

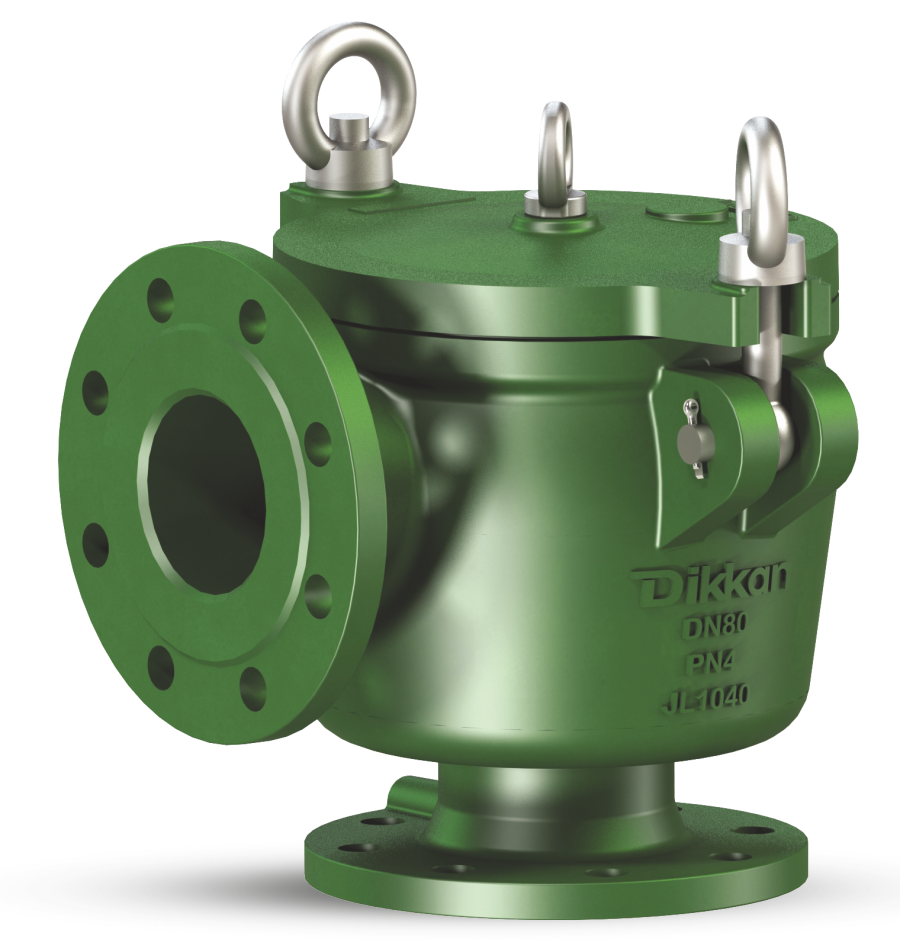

New execution Ductile Iron & Steel Dikkan mud boxes with DIN face to face length and
drain plug are installed in suction pipes board vessels to protect pumps against large
solids. The standard perforation of the basket is 5 mm square for DN 25 to DN 65 and
8 mm square for DN 80 to DN 300. As an option basket perforation can be 3 mm or other
special perforation.The cover is mounted with wing bolts and eye nuts. Flanges are
provided with a blind bass, suitable for mounting manometer.
Application: Especially for suction and discharge lines for sea cooling water and bilge
systems.

Bize Ulaşın
Dikkan Valve
Kemalpaşa OSB Mah.
İzmir Kemalpaşa Asfaltı Cad.
No:30 İç Kapı No:1,
Kemalpaşa / İzmir / Türkiye
Telefon: 0090 232 877 17 14
Fax: 0090 232 877 17 15

E-Posta Gönder

My Dikkan

Sitenin tüm işlevlerini ve avantajlarını kullanabilmek için bir kullanıcı hesabına ihtiyacınız vardır.

Kayıt Ol / Giriş Yap

		Hydro test pressure [bar]
Bore	Pressure rating	Casing
DN 25 - DN 300	PN4	6

Part No.	Component	Mater
1	Body	EN-GJS400-18-LT	EN-JS 1025	GGG40.3
2	Cover	EN-GJS400-18-LT	EN-JS 1025	GGG40.3
3	Basket	X5CrNiMo17-12-2	1.4401	AISI316
4	Cover sealing	NBR	NBR	NBR
5	Wing bolts, eye nuts	Steel	Steel	Steel
6	Drain plug	CuZn39Pb3	CW614N	Ms58

DN [mm]	Flange Connection	ØD [mm]	L [mm	H [mm]	Screen Perf	Eyenut Qty	Drain Plug	Air Plug	Weight [kg]	Dikkan ordering code
25	PN10	115	160	180	5x5	2	R3/8"	-	5	D038136XXQPPP18100250000
32	PN10	140	200	210	5x5	2	R3/8"	-	8	D038136XXQPPP18100320000
40	PN10	150	200	205	5x5	2	R1/2"	-	8.5	D038136XXQPPP18100400000
50	PN10	165	230	235	5x5	2	R1/2"	-	12	D038136XXQPPP18100500000
65	PN10	185	290	275	5x5	2	R1/2"	-	16	D038136XXQPPP18100650000
80	PN10	200	310	301	8x8	2	R1/2"	-	20	D038136XXQPPP18100800000
100	PN10	220	350	350	8x8	2	R1/2"	-	28	D038136XXQPPP18101000000
125	PN10	250	400	420	8x8	2	R1/2"	-	39	D038136XXQPPP18101250000
150	PN10	285	480	475	8x8	2	R1/2"	-	62	D038136XXQPPP18101500000
200	PN10	30	600	570	8x8	4	R3/4"	R1/2"	103	D038136XXQPPP18102000000
250	PN10	395	600	610	8x8	4	R1"	R1/2"	141	D038136XXQPPP18102500000
300	PN10	445	600	680	8x8	4	R1"	R1/2"	179	D038136XXQPPP18103000398
300	PN10	445	700	680	8x8	4	R1"	R1/2"	189	D038136XXQPPP18103000401
